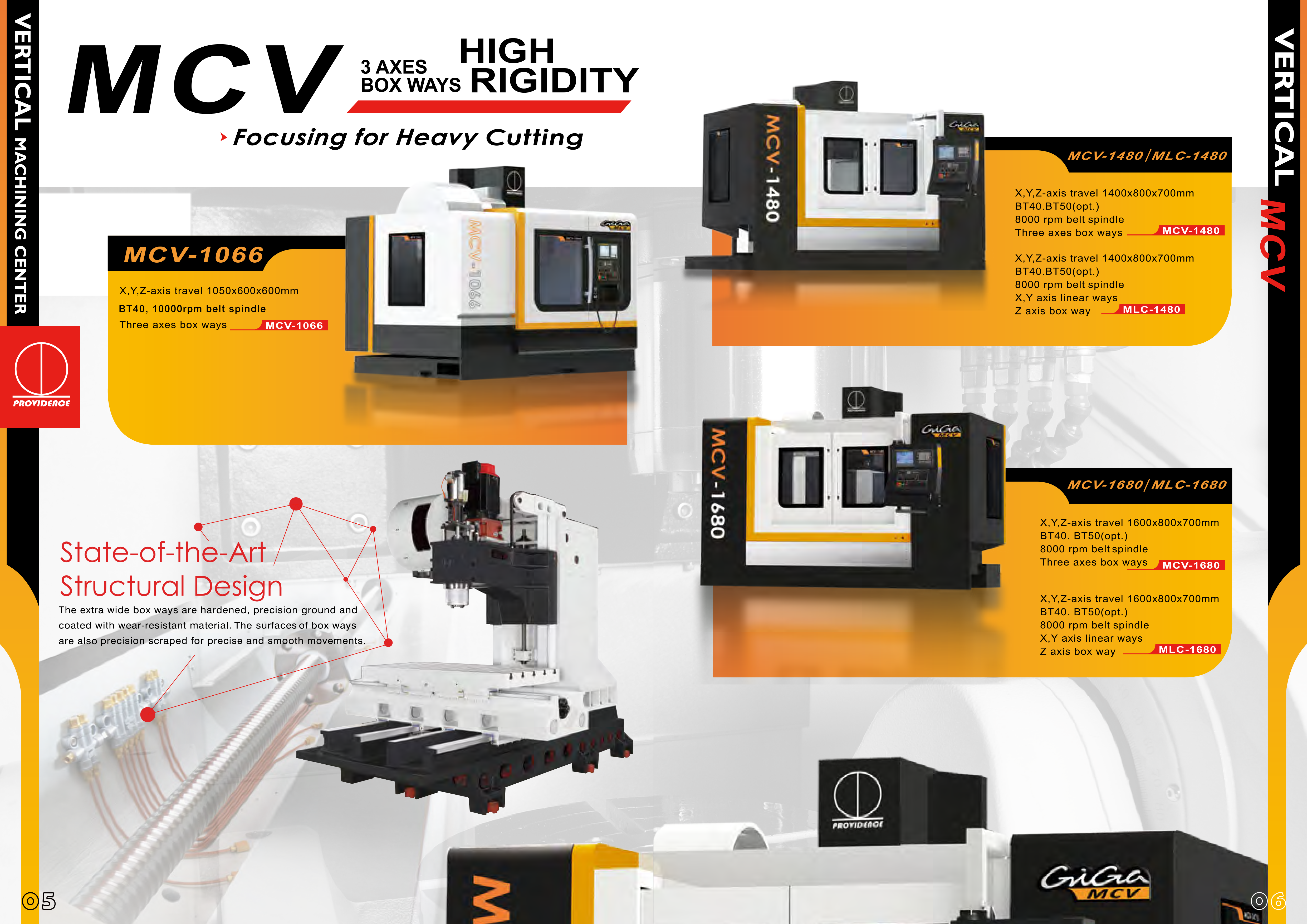

| MODEL | MCV-1680 |
|---|---|
| TRAVEL | |
| X-axis | 1600 mm |
| Y-axis | 800 mm |
| Z-axis | 700 mm |
| Spindle nose to table | 150-850 mm |
| Distance between spindle center&column slideway | 910 mm |
| SPAN | |
| X-axis span/width | 500/50 mm |
| Y-axis span/width | 1280/50 mm |
| Z-axis span/width | 660/50 mm |
| TABLE | |
| Size | 1600x750 mm |
| Max. table load | 1500 kgs |
| T-slot (width x no x distance) | 22x5x150 mm |
| SPINDLE | |
| Spindle speed | 8000/10000/6000 rpm |
| Transmission of spindle | Belt/DDS/Gear Box |
| Spindle nose taper | BT40/BT50(OPT.) |
| Spindle motor | BT40: 11/15 kw BT50: 15/18.5 kw |
| Spindle front bearing | Φ70/90 mm |
| FEED RATE | |
| Rapid feed rate of X/Y/Z | 15/15/12 m/min |
| Cutting feed rate | 1-10 m/min |
| X/Y/Z axis ballscrew size x pitch | Φ50 x 12 mm |
| X/Y/Z axis servo motor | 3/3/3 kw |
| ATC | |
| ATC type | Arm Type |
| Tool capacity | 24/32/40 pcs |
| Max. tool weight | 7/15 kgs |
| Max. tool length | 300 mm |
| Max. tool diameter | 80/140 (110/220) mm |
| Tool change time | 2(2.5) sec |
| OTHERS | |
| Air source | 6 kgs/cm² |
| Occupied space (L x W x H) | 4050x3500x3350 mm |
| Machine weight | 14200 kgs |
